SVG NBA Trading Cards Front/Back
For this project I wanted to see if I could replicate in Power BI the NBA trading cards I used to collect as a kid. All of the elements such as stats, description, colors, and images are data driven from the model. You will need to add a custom visual to your Power BI report called HMTL Content . Once you have that installed you can create the measures below and start mapping your data. Another note is that you will need to host your images on the web somewhere and reference those urls in your data.

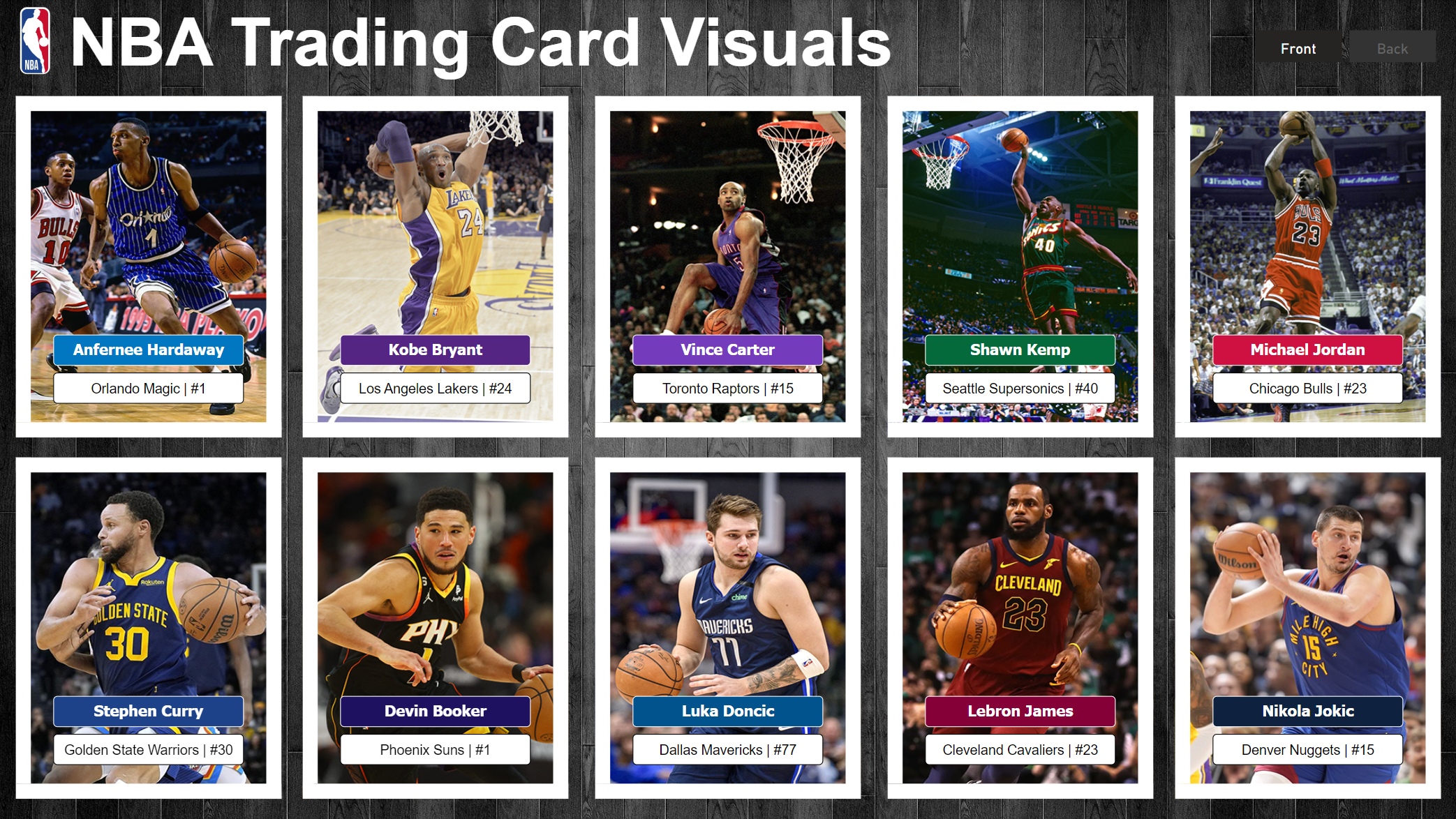

Source codeCard Front
Card Front =
// Get card data
VAR PlayerName = MAX('Card Player Fact'[Name])
VAR PlayerImage = MAX('Card Images Dim'[Card Front])
VAR TeamColor1 = MAX('Teams Dim'[Color 1])
VAR JerseyAndTeam = MAX('Teams Dim'[City]) & " " & MAX('Teams Dim'[Name]) & " | #" & MAX('Card Player Fact'[Jersey Number])
// HTML code
VAR FinalCode = "
<html>
<header>
<style>
#container {
width: 350px;
height: 450px;
position: relative;
}
#card {
width: 100%;
height: 100%;
position: absolute;
top: 0;
left: 0;
z-index: 10;
}
</style>
</header>
<body>
<div id='container'>
<div id='image'>
<img src='" & PlayerImage &"' height='450' width='350' />
</div>
<div id='card'>
<svg height = '450' width='350'>
<!-- Borders -->
<rect height='430' width = '20' fill ='white'></rect>
<rect height='430' width = '20' x='330' fill ='white'></rect>
<rect height='20' width = '350' fill ='White'></rect>
<rect height='20' width = '350' y='430' fill ='White'></rect>
<!-- Card Content -->
<rect height='40' width='250' y='365' x='50' fill='white' stroke='black' stroke-width='1px' rx='5px' ry='5px' stroke-linejoin='round' ></rect>
<rect height='40' width='250' y='315' x='50' fill='" & TeamColor1 & "' stroke='white' stroke-width='1px' rx='5px' ry='5px' stroke-linejoin='round'></rect>
<text x='50%' y='336' dominant-baseline='middle' text-anchor='middle' font='ariel' font-size='20' font-family='Tahoma' font-weight='bold' fill='white'>" & PlayerName & "</text>
<text x='50%' y='387' dominant-baseline='middle' text-anchor='middle' font='ariel' font-size='18' font-family='arial' fill='black'>" & JerseyAndTeam & " </text>
</svg>
</div>
</div>
</body>
</html> "
RETURN FinalCode

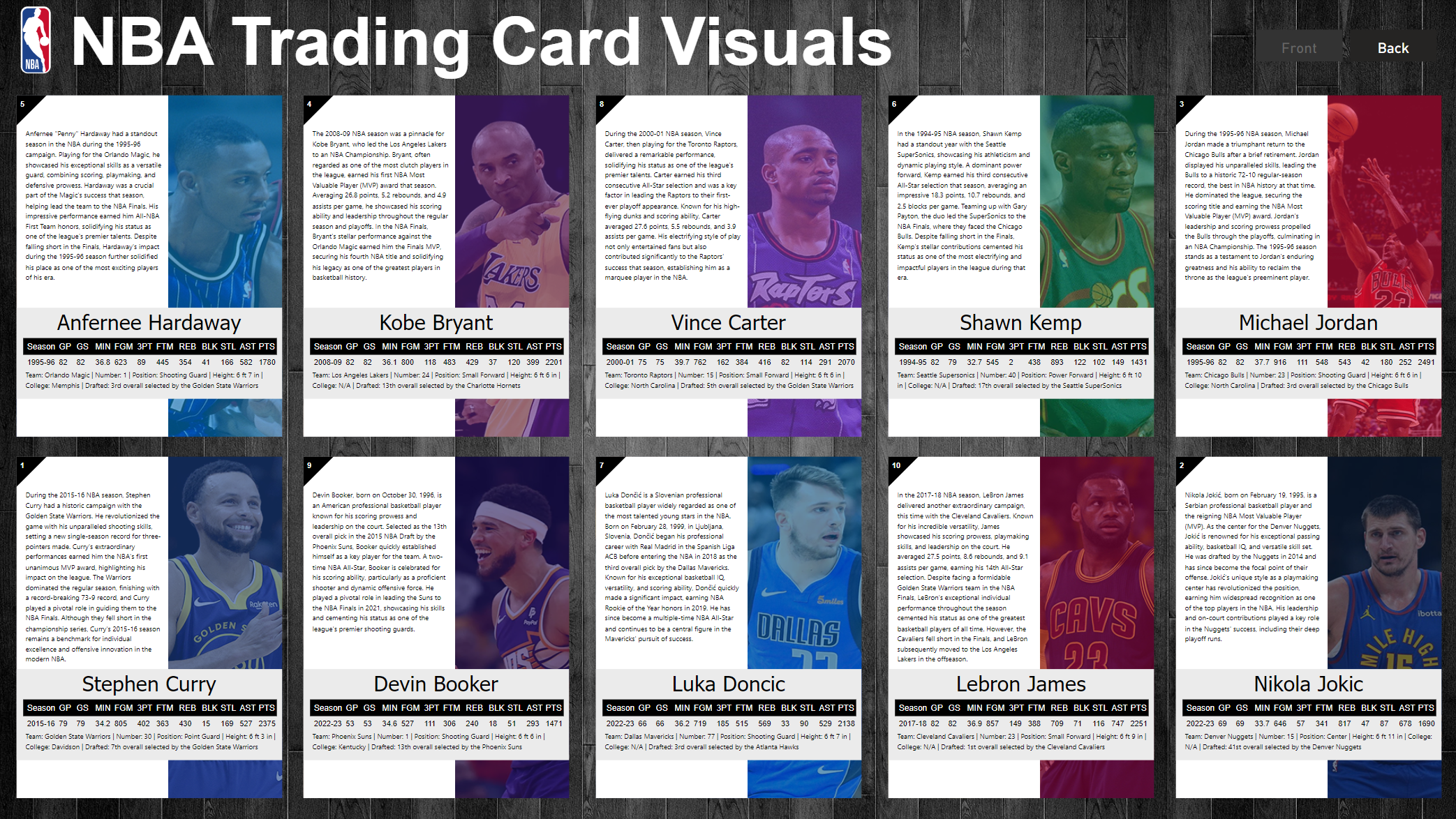

Card Back
Card Back =
// Get card data
VAR CardNumber = MAX('Card Player Fact'[Card ID]) // Card Number
VAR PlayerName = MAX('Card Player Fact'[Name]) // Player Name
VAR PlayerImage = MAX('Card Images Dim'[Card Back]) // Player Image
VAR TeamColor1 = MAX('Teams Dim'[Color 1]) // Team Color 1
VAR TeamColor2 = MAX('Teams Dim'[Color 2]) // Team Color 2
VAR Season = MAX('Card Player Fact'[Season]) // Season
VAR GP = MAX('Card Player Fact'[GP]) // Games Played
VAR GS = MAX('Card Player Fact'[GS]) // Games Started
VAR MINAVG = MAX('Card Player Fact'[MIN]) // Minutes Played
VAR FGM = MAX('Card Player Fact'[FG]) // Field Goals Made
VAR THREEPT = MAX('Card Player Fact'[3PT]) // 3 Pointers Made
VAR FTM = MAX('Card Player Fact'[FT]) // Free Throws Made
VAR REB = MAX('Card Player Fact'[REB]) // Rebounds
VAR STL = MAX('Card Player Fact'[STL]) // Steals
VAR AST = MAX('Card Player Fact'[AST]) // Assists
VAR BLK = MAX('Card Player Fact'[BLK]) // Blocks
VAR PTS = MAX('Card Player Fact'[PTS]) // Points
VAR PlayerDesc = MAX('Card Player Fact'[Description]) // Description of Player
VAR PlayerCollege = MAX('Card Player Fact'[College]) // Player College
VAR PlayerHeight = MAX('Card Player Fact'[Height]) // Player Height
VAR PlayerDraft = MAX('Card Player Fact'[Drafted]) // Player Draft Position
VAR PlayterTeam = MAX('Teams Dim'[City]) & " " & MAX('Teams Dim'[Name]) // Player Team
VAR PlayerPosition = MAX('Card Player Fact'[Position]) // Player Position
VAR PlayerJerseyNumber = MAX('Card Player Fact'[Jersey Number]) // Player Jersey Number
VAR PlayerBottomStats = "Team: " & PlayterTeam & " | Number: " & PlayerJerseyNumber & " | Position: " & PlayerPosition & " | Height: " & PlayerHeight & " | College: " & PlayerCollege & " | Drafted: " & PlayerDraft // Bottom Stats Combined
VAR FinalCode = "<html>
<header>
<style>
#container {
width: 350px;
height: 450px;
position: relative;
}
#card {
width: 100%;
height: 100%;
position: absolute;
top: 0;
left: 0;
z-index: 10;
}
#playerdesc
{
font-size: 9px;
}
</style>
</header>
<body>
<div id='container'>
<div id='image'>
<img src='" & PlayerImage & "' height='450' width='350' />
</div>
<div id='card'>
<svg height = '450' width='350'>
<!-- Left Background -->
<rect height='450' width = '200' fill ='white'></rect>
<!-- Right Background -->
<rect height='450' width='150' x='200' opacity='0.6' fill='" & TeamColor1 & "'> </rect>
<!-- Card Number Background -->
<polygon points='0 0, 0 40, 40 0'/>
<!-- Stats Background-->
<rect height='120' width='350' y='280' x='0' fill='#ebebeb'></rect>
<!-- Card Number -->
<text x='5' y='15' font-family='Sans,Arial' fill='white' font-size='10' font-weight='bold'>" & CardNumber & "</text>
<!-- Player Description -->
<foreignObject x='12' y='35' width='180' height='255'>
<p id = 'playerdesc'>" & PlayerDesc & "</p>
</foreignObject>
<!-- Player Bottom Stats -->
<foreignObject x='12' y='353' width='330' height='255'>
<p id = 'playerdesc'>" & PlayerBottomStats & "</p>
</foreignObject>
<!--Name Label-->
<text x='50%' y='302' dominant-baseline='middle' text-anchor='middle' font='arial' font-size='28' font-family='Tahoma' fill='black'>" & PlayerName & " </text>
<!-- Stats Label Bar -->
<rect height='22' width='334' x='9' y='320' fill='black'></rect>
<!-- Season Label-->
<text x='14' y='335' font-family='Sans,Arial' fill='white' font-size='11'>Season</text>
<!-- (GP) Games Played Label-->
<text x='56' y='335' font-family='Sans,Arial' fill='white' font-size='11'>GP</text>
<!-- (GS) Games Started Label-->
<text x='79' y='335' font-family='Sans,Arial' fill='white' font-size='11'>GS</text>
<!-- (MIN) Mintues Played Average Label-->
<text x='104' y='335' font-family='Sans,Arial' fill='white' font-size='11'>MIN</text>
<!-- (FGM) Field Goals Label-->
<text x='129' y='335' font-family='Sans,Arial' fill='white' font-size='11'>FGM</text>
<!-- (3PT) 3 Pointers Label-->
<text x='159' y='335' font-family='Sans,Arial' fill='white' font-size='11'>3PT</text>
<!-- (FTM) Free Throws Label-->
<text x='184' y='335' font-family='Sans,Arial' fill='white' font-size='11'>FTM</text>
<!-- (REB Rebounds Label)-->
<text x='214' y='335' font-family='Sans,Arial' fill='white' font-size='11'>REB</text>
<!-- (BLK) Blocks Label-->
<text x='244' y='335' font-family='Sans,Arial' fill='white' font-size='11'>BLK</text>
<!-- (STL) Steals Label-->
<text x='269' y='335' font-family='Sans,Arial' fill='white' font-size='11'>STL</text>
<!-- (AST) Assits Label-->
<text x='294' y='335' font-family='Sans,Arial' fill='white' font-size='11'>AST</text>
<!-- (PTS) Points Label-->
<text x='319' y='335' font-family='Sans,Arial' fill='white' font-size='11'>PTS</text>
<!-- Season Stat-->
<text x='14' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & Season & "</text>
<!-- (GP) Games Played Stat-->
<text x='56' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & GP & "</text>
<!-- (GS) Games Started Stat-->
<text x='79' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & GS & "</text>
<!-- (MIN) Minutes Average Stat-->
<text x='104' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & MINAVG & "</text>
<!-- (FG) Field Goals Stat-->
<text x='129' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & FGM & "</text>
<!-- (3PT) 3 Pointers Stat-->
<text x='159' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & THREEPT & "</text>
<!-- (FT) Free Throws Stat-->
<text x='184' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & FTM & "</text>
<!-- (REB) Rebounds Stat-->
<text x='214' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & REB & "</text>
<!-- (BLK) Blocks Stat-->
<text x='244' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & BLK & "</text>
<!-- (STL) Steals Stat-->
<text x='269' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & STL & "</text>
<!-- (STL) Assists Stat-->
<text x='294' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & AST & "</text>
<!-- (PTS) Points Stat-->
<text x='319' y='355' font-family='Sans,Arial' fill='black' font-size='10'>" & PTS & "</text>
</svg>
</div>
</div>
</body>
</html>"
RETURN FinalCode
